Concrete deck structure truck weighing scale

Short Description:

Concrete structure truck weighing scale is a weighing equipment designed and developed for chemical, coastal and other strong corrosive environments.
With standard sensors and displays, it weighs in chemical and other corrosive liquid weigh tank trucks, and solves the problem of short service life of corroded scales of ordinary standard carbon steel structures.
The main body of the scale is composed of steel frame steel and internal steel mesh, and the internal concrete is poured after the assembly is poured to become a corrosion-proof surface.
It is suitable for the chemical industry to store corrosive liquids, such as strong acids and alkalis and other waste liquid tank trucks for weighing.


Product Detail

Product Tags

Video

Specification

Accuracy OIML III
Working temperature -30°C—70°C
Material QS235 Steel
Weighing capacity 10T-200T
Axel Weighing Capacity 30T, 40T
Platform length: 6-40m or customized
Division 5-100kgs
Top Thickness 10mm or customizd
Safe overload 150%
Structure U shaped steel
Storage 205 weighing record can be stored

Specification

Specification Sheet of Truck Scale
Model Capacity Platform size Division Section Load Cell Weight (T) 20FCL
SCS-60 60t-100t 3x7m 20kg 2 6 ±3.5 2 set
SCS-60 60t-100t 3x8m 20kg 2 6 ±4.0 2 set
SCS-60 60t-100t 3x9m 20kg 2 6 ±4.5 1 set
SCS-60 60t-100t 3x10m 20kg 2 6 ±5.0 1 set
SCS-80 80t-100t 3x12m 20kg 3 8 ±6.1 1 set
SCS-80 80t-100t 3x14m 20kg 3 8 ±7.0 1 set
SCS-80 80t-100t 3x15m 20kg 3 8 ±7.2 1 set
SCS-80 80t-100t 3x16m 20kg 3 8 ±8.0 1 set
SCS-80 80t-100t 3x18m 20kg 4 10 ±9.1 1 set
SCS-120 120t-150t 3x16m 50kg 4 10 ±8.3 1 set
SCS-120 120t-150t 3x18m 50kg 4 10 ±9.3 1 set

Our platform structures advantages

package

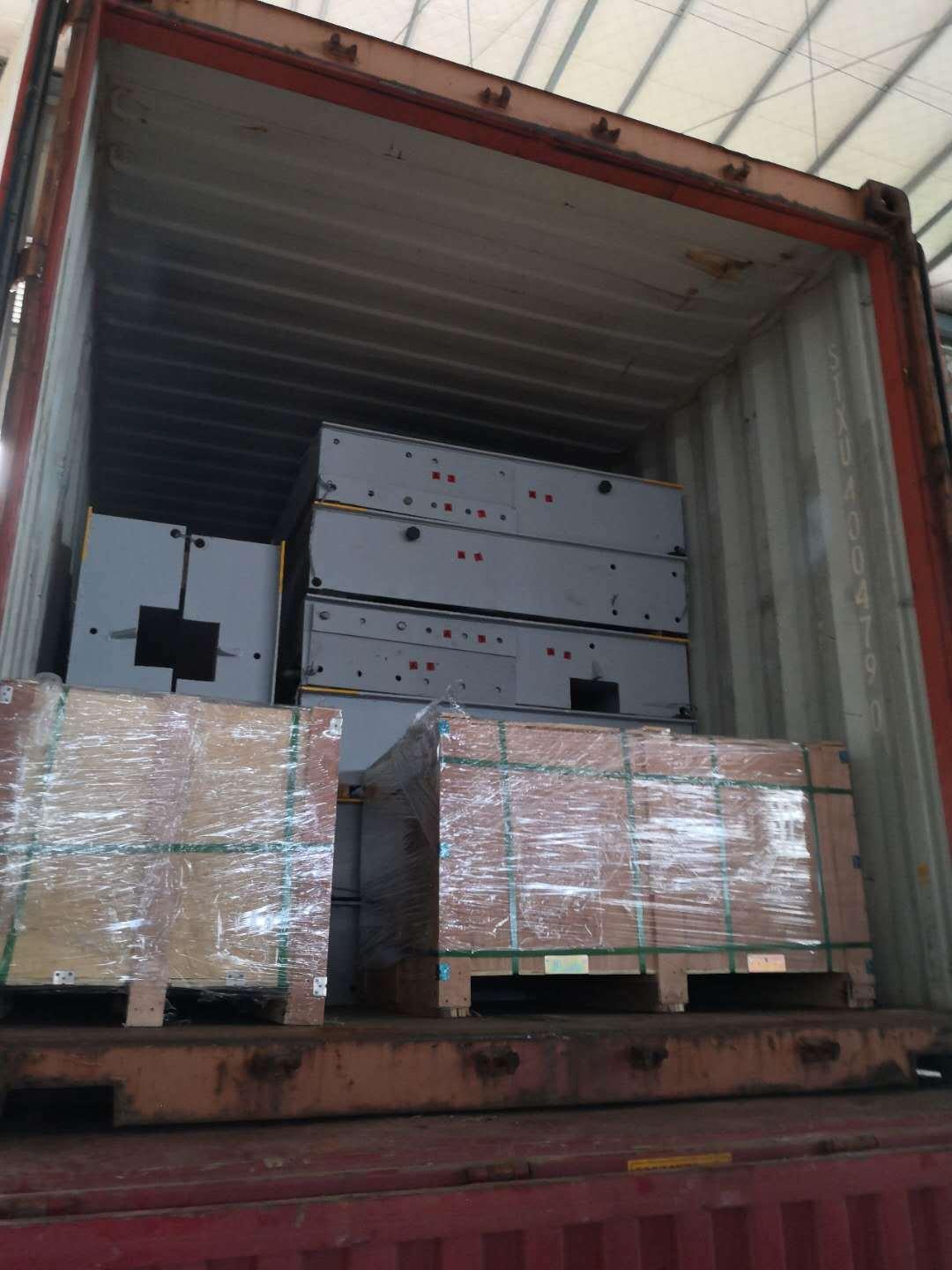

Loading container to customers

package

FAQ

1.Can you customized the truck weighing scale design for us?
Yes, we have professional team with rich experience of all type scales design by CAD software.you only need to tell us scale design or send us the technical drawing you want, so that we can customize according to your request.

2.Can you also offer truck scales weighing scales for us?
Yes, we can offer different models of different capacity and size of truck weighing scales to meet different request of customers.

3.How about your machine quality, we are worry about the quality?
We are more than 30 years manufacturing experience of different kinds of electronic truck scales and weighing scales.We strictly manufacture and manage according to IOS9001:2000 System.and can match all the CE standard or more strict standard. Our products are running well in more than 30 countries

4.How we visit your factory and what will be the procedure?
Ourcompany located in Quanzhou, FU JIAN province, our nearest airport is JIN JIANG airport, if you take plane, it will need about 1 hours from Guangzhou city, 1.5hours from shanghai and 2 hour from Beijing.We will pick you up from airport as well as the train station.Welcome you and your team to visit us at any time!

5.Your price is high, is there any discount?
We always provide high quality weighing scales with reasonable prices.Our truck scales have enough quality standard to make sure the scale can work at different sourrounings situations. Our marketing style is quality equal to price, the price will be acceptable for our clients and durable for our productsAnyhow, when we will negotiate the price with each other during our meeting in factory and try our best to get a good satisfaction.

Why you choose us?  ----  IMPORTANT!!

 1/ PROFESSIONAL EXPERIENCE
 2/ RELIABLE QUALITY GUANRANTEED
 3/ REASONABLE PRICE BASED ON ITS QUALITY
 4/ STABLE WORKING EASY INSTALL AND MAINTANCE
 5/ SPECIAL SERVICE AND IN-TIME SERVICE BEFORE AND AFTER SALES
 6/ MATURE TECHNICS UPDATE
